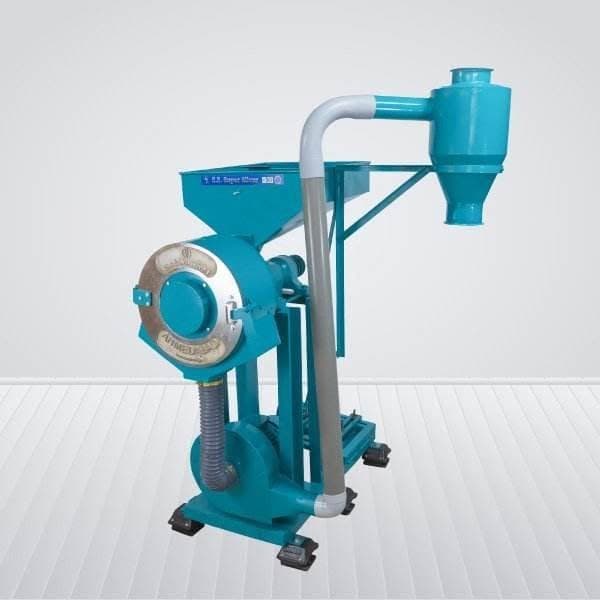

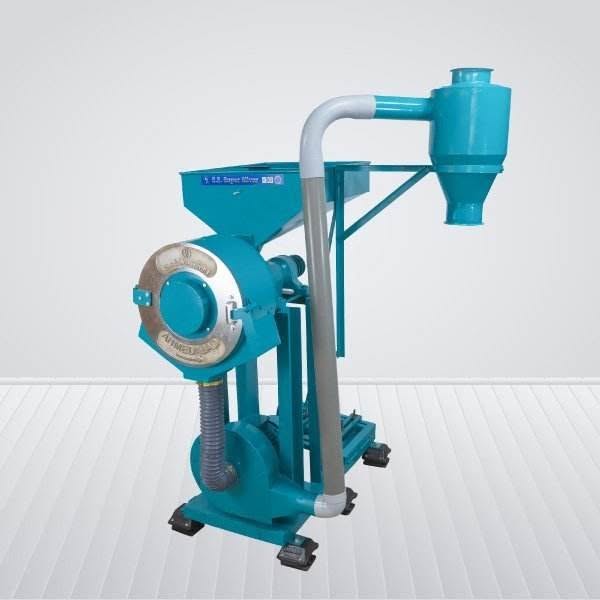

Double Stage Pulverizer With Cyclone
10 HP Commercial Atta chakki gives low maintenance & cyclone Technology with two stage grinding mechanism. Our 10 hp double stage cyclone pulverizer made with Heavy duty fabrication body structure and CI Casting chamber. our this atta chakki have six bitter plus four bitter with 14 inch chamber size. no need to required foundation for this commercial atta chakki machine because we have use anti vibration pad. 10 hp double camber with cyclone atta chakki give approx. 120 to 140Kg grinding capacity. We have use oil tank for bearing lubrication and this machine produce high noise compare to stone type atta chakki because machine RPM is 3000 to 4200. cyclone atta chakki give cool and fresh atta.
Technical Specification
Motor 4200 RPM | Multipurpose Use for |
7.5 HP 3 Phase | Hotel & Restaurent | Catering | Masala Industries | Chemical Industries | Pharmaceuticals | Ayurvedic | Gruh Udhyog |
10 HP 3 Phase |
Material | Model | ||
---|---|---|---|
7.5 HP Double Drum | 10 HP Double Drum | 15 HP Double Drum | |
HxL Approx | 41x21x48 | 41x24x50 | 41x26x50 |
Weight Approx | 167 kg | 187 kg | 207 kg |
Capacity Approx | 80 to 100 kg | 120 to 140 kg | 140 to 170 kg |
Chember Size | 11.5x5 + 9.5x4 | 14x5.5 + 9.5x4 | 16x6 + 9.5x4 |
Blade | 6+4 | 6+4 | 6+4 |
Bearing Size | 6308 SKF | 6308 SKF | 6308 SKF |
(* It should be depended / very on material fitness, power & jail) |
